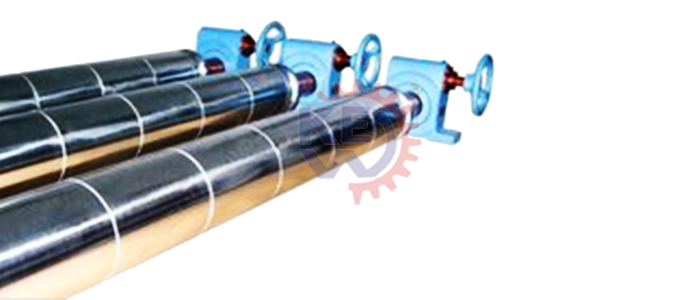

Bow Roll



Bow Roll

Bow Roll

Bow Rolls are also known as Banana Rolls, Spreader Rolls, Curve rubber expander. These types of rollers help remove wrinkles, slack edges, spreading, and slit separation on any type of fabric or cloth.

Bow Roll is the most commonly used wrinkle removing equipment. It mainly consists of a bowed shaft, metal segments, sealed ball bearings, abrasion resistance, rubber sleeve, etc. We Are Also Manufacturer Rubber Fillet

Krishna Engineering Works incorporated into manufacturing and exporting business of Bow Rolls from India. Our skilled engineers have designed bow roll for the application to get maximum results from wrinkles.

We ensure to get the premium quality of wrinkle removing from Bow Roll with meeting international industrial standards. All type of Rubber Roller and Web Guide System manufacturer

Technical Specification

We make Expander Rollers (Bow Rolls) having a very wide range of dimensions and suitable for an equally wide range of applications and web materials.

They are supplied with mounting brackets, which could be either wall mounting or foot mounting. The Expander Rollers, Rubber Roller, we offer consist of bowed shafts, sealed ball bearings, abrasion resistant sleeve, and metal segments. These are widely used as wrinkle remover devices in various industries and are available with us in various dimensions. Further, these are also supplied with gear sets and mounting brackets which can either be Foot Mounted or Wall Mounted.

Bow Roll Manufacturer

  • Rubber Sleeve Covered. (High-Quality Synthetic Nitride Sleeve).
  • Metal Expander with hard chrome plated surface for high-speed application.
  • Vary Bow Expander Roller.
  • Sleeve Expander Roller for non-sticking application.

Standard Advantages

  1. Single Acting Banana Roller
  2. Double Acting Banana Roller
  3. Removes Wrinkles Easily
  4. Removes Baggy Center
  5. Removes Shrunk Width
  6. Removes Slack Edge
  7. High Working Speed
  8. All Sizes are Available
  9. Durable and Maintenance Free
  10. Overlapping Removal

The Performance of our Rubber Expander Roller (Bow Roll) depends upon the following points:
-Wrap angle
-Lead-in & Lead-out distance
-Position of the bow (can be adjustable)

In this, 3:1 (lead-in: lead-out) ratio is considered to be perfect. The best results are attained when Bow Roll is perpendicular to the web direction.
Advantages of our Bow Roll are:
– Control Slack Edges
– Remove wrinkles
– Separate slit webs on the winder
– Eliminate the baggy center
– Try to even out lateral tension across the web width
